Question 1
The Haber process is used in industry to convert nitrogen and hydrogen to ammonia. The formation of ammonia gas is exothermic.

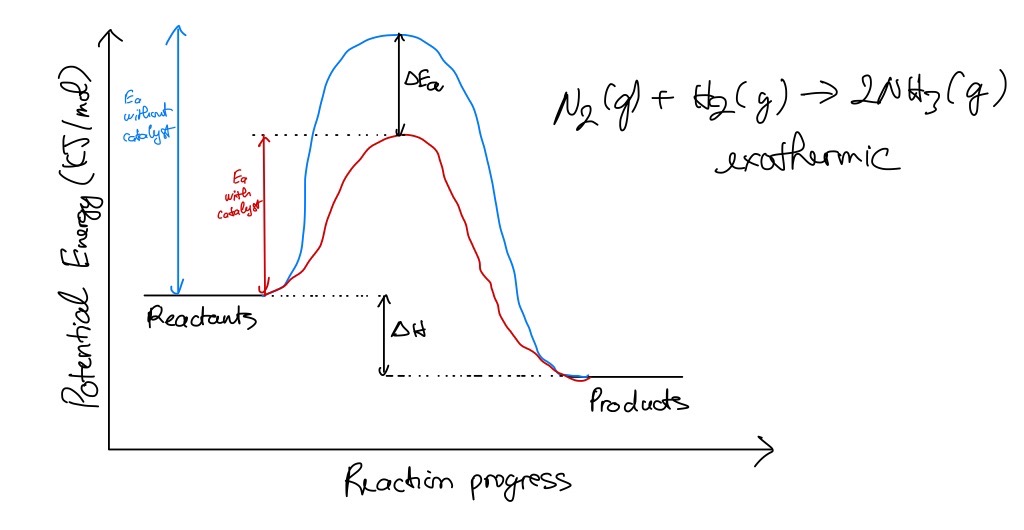

a. Sketch the enthalpy profile for the Haber process in the absence of a catalyst.
b. On the same diagram, sketch the enthalpy profile for the Haber process in the presence of a catalyst.
c. Label the activation energy on one of the profiles.
Hard
Mark as Complete
Mark Scheme
Question 2
The activation energy for the uncatalysed decomposition of ammonia to its elements is +335 kJ mol−1.
a. Write the equation for this reaction, including state symbols.
b. The enthalpy of reaction for this decomposition is +92 kJ mol−1. Calculate the activation energy for the uncatalysed formation of ammonia from nitrogen and hydrogen.
c. If tungsten is used as a catalyst, the activation energy changes. Explain how it will change.
Hard
Mark as Complete
Mark Scheme
Question 3
a. Ammonia is a very important industrial chemical with many uses including the manufacture of other chemicals.
The first step in the production of nitric acid involves the reversible reaction of gaseous ammonia in air to form nitrogen(II) oxide gas and water vapour.
Construct an equation for this reaction. Include state symbols.
b. For this reaction, a fine mesh is powder-coated with a mixture of platinum and rhodium catalysts.
Deduce the type of catalysis involved in the formation of nitrogen(II) oxide. Explain your answer.
Medium
Mark as Complete
Mark Scheme
Question 4
a. The decomposition of 3% hydrogen peroxide solution into water and oxygen is a very slow chemical reaction. Construct an equation for this reaction. Include state symbols.
b. The decomposition of 3% hydrogen peroxide solution can be catalysed by different chemicals including solid manganese dioxide and catalase solution. Deduce the type of catalysis involved in the reaction using each catalyst. Explain your answer.
Medium
Mark as Complete
Mark Scheme
Question 5

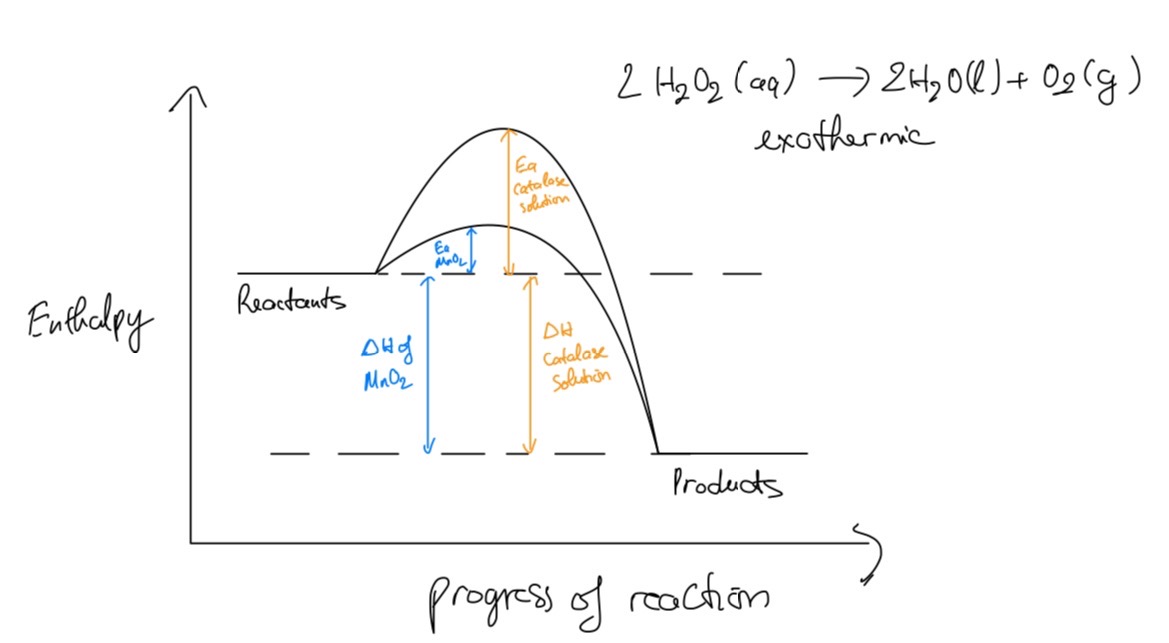

For the exothermic decomposition of hydrogen peroxide, manganese dioxide gives a greater increase in the rate of reaction than catalase solution.
a. Sketch a reaction pathway diagram for the reaction using each catalyst.
b. Label the diagram to show the enthalpy change, ΔH, and the activation energy, E , for each reaction.
Medium
Mark as Complete
Mark Scheme
Question 6
a. Gaseous A and B were added together to produce C as shown.
A (g) + 2B (g) ⇌ C (g)

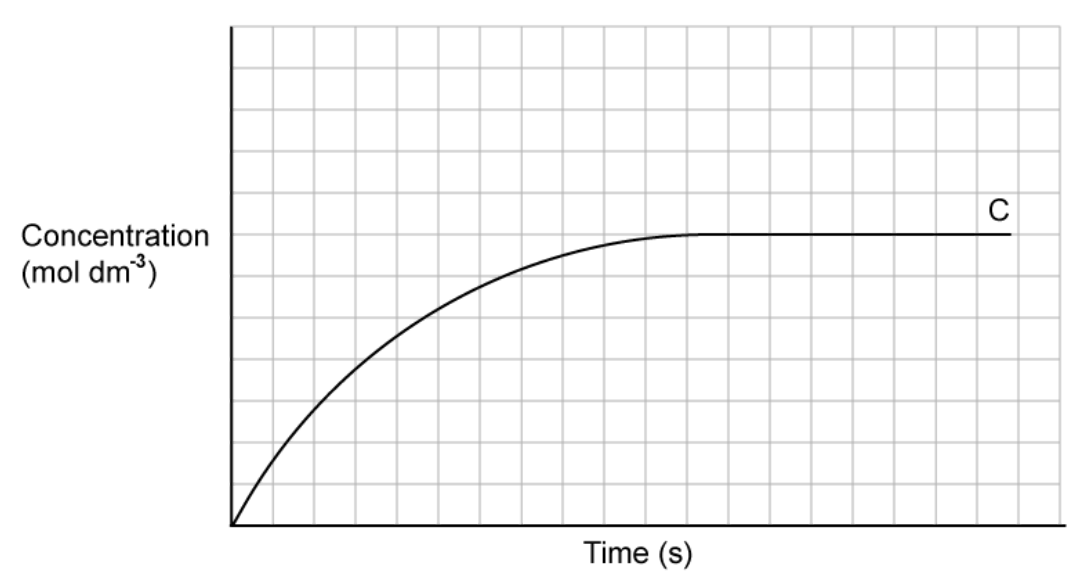

The figure shows the production of C over time.
i. Sketch a line to show what happens to the concentrations of A and B during the progress of the reaction.
ii. Label the point at which an equilibrium is first established.
b. Explain how the addition of a catalyst affects the rate and yield of the reaction in (a)
Medium
Mark as Complete
Mark Scheme
Question 7
Which statements correctly describe how a catalyst works?
A. A catalyst has no effect on the enthalpy change of the reaction
B. A catalyst increases the rate of the forward reaction only
C. A catalyst increases the average kinetic energy of the reacting particles
D. The mass of the reactant changes after the reaction
Easy
Mark as Complete
Mark Scheme
Question 8
The addition of a catalyst to a reaction provides an alternate mechanism with
A. Lower activation energy and lower reaction rate
B. Lower activation energy and higher reaction rate
C. Higher activation energy and lower reaction rate
D. Higher activation energy and higher reaction rate
Easy
Mark as Complete
Mark Scheme
Question 9
Which of the following is involved in the Haber process?
A. a heterogeneous iron catalyst
B. a homogeneous iron catalyst
C. a heterogeneous vanadium catalyst
D. a homogeneous vanadium catalyst
Medium
Mark as Complete
Mark Scheme
Question 10
The oxidation of butadiene, CH2=CHCH=CH2 , using air or oxygen, produces the molecule crotonaldehyde, CH3CH=CHCHO.
One method of oxidation is to pass a mixture of butadiene and oxygen through a hot aqueous solution of palladium(II) ions, Pd2+ (aq), which catalyse the reaction.
Which statement about the action of the Pd2+ (aq) ions is not correct?
A. Pd2+ (aq) lowers the activation energy for the reaction.
B. Pd2+ (aq) increases the energy of the reacting molecules.
C. When Pd2+ (aq) is used, the reaction proceeds by a different route.
D. Changing the concentration of the Pd2+ (aq) affects the rate of oxidation.
Easy
Mark as Complete
Mark Scheme
Question 1
The Haber process is used in industry to convert nitrogen and hydrogen to ammonia. The formation of ammonia gas is exothermic.
a. Sketch the enthalpy profile for the Haber process in the absence of a catalyst.
b. On the same diagram, sketch the enthalpy profile for the Haber process in the presence of a catalyst.
c. Label the activation energy on one of the profiles.
Question 2
The activation energy for the uncatalysed decomposition of ammonia to its elements is +335 kJ mol−1.
a. Write the equation for this reaction, including state symbols.
b. The enthalpy of reaction for this decomposition is +92 kJ mol−1. Calculate the activation energy for the uncatalysed formation of ammonia from nitrogen and hydrogen.
c. If tungsten is used as a catalyst, the activation energy changes. Explain how it will change.
a. 2NH3(g) → N2(g) + 3H2(g)

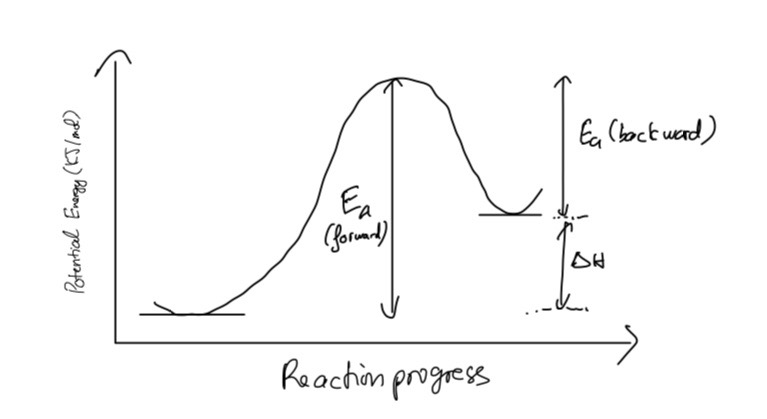

b. The activation energy of forward reaction = + 335 kJ mol-1
The activation energy for the uncatalysed formation of ammonia = Ea (backward) = +335 - 92 = 243 kJ mol-1
c. It will lower the activation energy.
Question 3
a. Ammonia is a very important industrial chemical with many uses including the manufacture of other chemicals.
The first step in the production of nitric acid involves the reversible reaction of gaseous ammonia in air to form nitrogen(II) oxide gas and water vapour.
Construct an equation for this reaction. Include state symbols.
b. For this reaction, a fine mesh is powder-coated with a mixture of platinum and rhodium catalysts.
Deduce the type of catalysis involved in the formation of nitrogen(II) oxide. Explain your answer.
a. The equation of reaction
4NH3 (g) + 5O2 (g) ⇌ 4NO (g) + 6H2O (g)
b. The type of catalyst is heterogeneous because the catalyst is in different state to reactants and the reactions are gaseous
Question 4
a. The decomposition of 3% hydrogen peroxide solution into water and oxygen is a very slow chemical reaction. Construct an equation for this reaction. Include state symbols.
b. The decomposition of 3% hydrogen peroxide solution can be catalysed by different chemicals including solid manganese dioxide and catalase solution. Deduce the type of catalysis involved in the reaction using each catalyst. Explain your answer.
a. The equation for the decomposition of hydrogen peroxide
2H2O2 (aq) → 2H2O (l) + O2 (g)
b. Solid manganese dioxide catalyst is heterogeneous because the catalyst is in a different state to the reactants
Catalase solution is homogeneous because it is in the same phase as the reactants
Question 5
For the exothermic decomposition of hydrogen peroxide, manganese dioxide gives a greater increase in the rate of reaction than catalase solution.
a. Sketch a reaction pathway diagram for the reaction using each catalyst.
b. Label the diagram to show the enthalpy change, ΔH, and the activation energy, E , for each reaction.
Question 6
a. Gaseous A and B were added together to produce C as shown.
A (g) + 2B (g) ⇌ C (g)
The figure shows the production of C over time.
i. Sketch a line to show what happens to the concentrations of A and B during the progress of the reaction.
ii. Label the point at which an equilibrium is first established.
b. Explain how the addition of a catalyst affects the rate and yield of the reaction in (a)

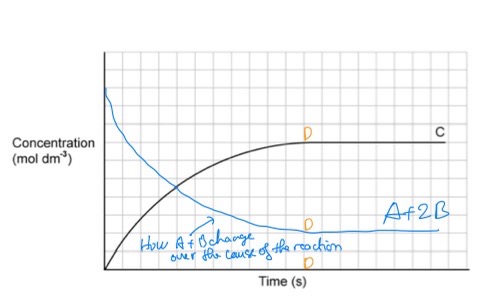

a. i.
ii. The letter D can be drawn at 3 positions on the graph that show horizontal straight lines.
b. Adding a catalyst will increase the rate of the forward reaction and backward reactions depending on our purpose and helps the reaction achieve equilibrium faster. However, catalyst does not affect the reaction yield. It provides a reaction pathway of lower activation energy.
Question 7
Which statements correctly describe how a catalyst works?
A. A catalyst has no effect on the enthalpy change of the reaction
B. A catalyst increases the rate of the forward reaction only
C. A catalyst increases the average kinetic energy of the reacting particles
D. The mass of the reactant changes after the reaction
The answer is A.
B is incorrect because a catalyst can increase the rate of both side reactions
C is incorrect because it does not affect the kinetic energy
D is incorrect because the catalyst is not consumed and does not change mass of reactants
Question 8
The addition of a catalyst to a reaction provides an alternate mechanism with
A. Lower activation energy and lower reaction rate
B. Lower activation energy and higher reaction rate
C. Higher activation energy and lower reaction rate
D. Higher activation energy and higher reaction rate
The answer is B
A, C, D are incorrect because they give the wrong combination of effects of catalyst. More specifically, catalysts provide an alternative reaction mechanism with a lower activation energy. This lower activation energy allows a greater proportion of reactant molecules to have sufficient energy for effective collisions, as explained by the Boltzmann distribution. Consequently, this leads to a higher rate of reaction.
Question 9
Which of the following is involved in the Haber process?
A. a heterogeneous iron catalyst
B. a homogeneous iron catalyst
C. a heterogeneous vanadium catalyst
D. a homogeneous vanadium catalyst
The answer is A
The Haber process is a gaseous reaction
The most common catalyst for this process is finely divided iron which provides a solid surface for reactants
B is incorrect because iron catalyst is not homogeneous
C and D are incorrect because this catalyst is for the Contact process
Question 10
The oxidation of butadiene, CH2=CHCH=CH2 , using air or oxygen, produces the molecule crotonaldehyde, CH3CH=CHCHO.
One method of oxidation is to pass a mixture of butadiene and oxygen through a hot aqueous solution of palladium(II) ions, Pd2+ (aq), which catalyse the reaction.
Which statement about the action of the Pd2+ (aq) ions is not correct?
A. Pd2+ (aq) lowers the activation energy for the reaction.
B. Pd2+ (aq) increases the energy of the reacting molecules.
C. When Pd2+ (aq) is used, the reaction proceeds by a different route.
D. Changing the concentration of the Pd2+ (aq) affects the rate of oxidation.
The answer is B
Because Pd2+ ions serve as a catalyst. As we know the catalyst helps reactions lower activation energy by providing an alternative pathway.
A, C and D are correct because they are talking about the right definition of catalysts
